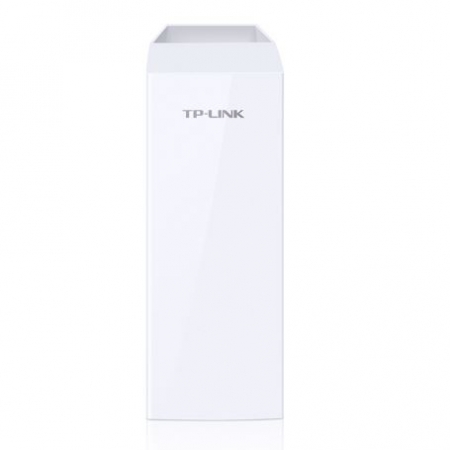

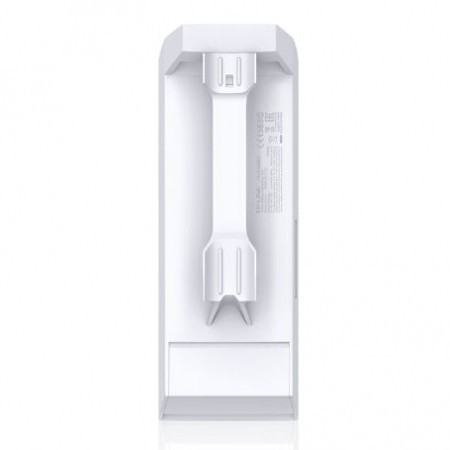

TP-Link CPE210 9dBi Outdoor Wireless Access Point

TP-Link CPE210 9dBi Outdoor Wireless Access Point

Name: TP-Link CPE210 9dBi Outdoor Wireless Access Point
Price: 102.00 BAM
Availability: InStock

300Mbps, 9dBi 2x2 Dual-polarized Directional Antenna, 1x 10/100Mbps, IEEE 802.11b/g/n; 2.4GHz; Qualcomm Atheros 560MHz CPU, MIPS 74Kc; 64MB DDR2 RAM, 8MB Flash; FCC, RoHS, IPX5

102,00 KM

Šifra artikla: 16617 Garancija: 24 mjeseci Kategorija: Mrežna oprema - Mrežna oprema - aktivna - Access Point, Range Extender

RASPOLOŽIVOST U PRODAJNIM CENTRIMA

Sarajevo - Aria (BBI)

Sarajevo - Dobrinja

Sarajevo - TC Merkur

Goražde

Gracanica

Opis proizvoda

Processor	Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM, 8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption	10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )	8.8 x 3.1 x 2.4 in.
Antenna Type	Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65 (H-Plane) / 35 (E-Plane)
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Outdoor ASA stabilized plastic material IPX5 waterproof Certification


Wireless Standards	IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	2.42.483GHz
Transmission Power	27dBm/500mw (1dBm step adjustable)


Wireless Configurations	Pharos MAXtream TDMA Technology 802.11b/g/n modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog


Dimensions(W x D x H)	4.3 x 2.2 x 1.3 in
Interfaces	1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	> 80
Certifications	FCC
